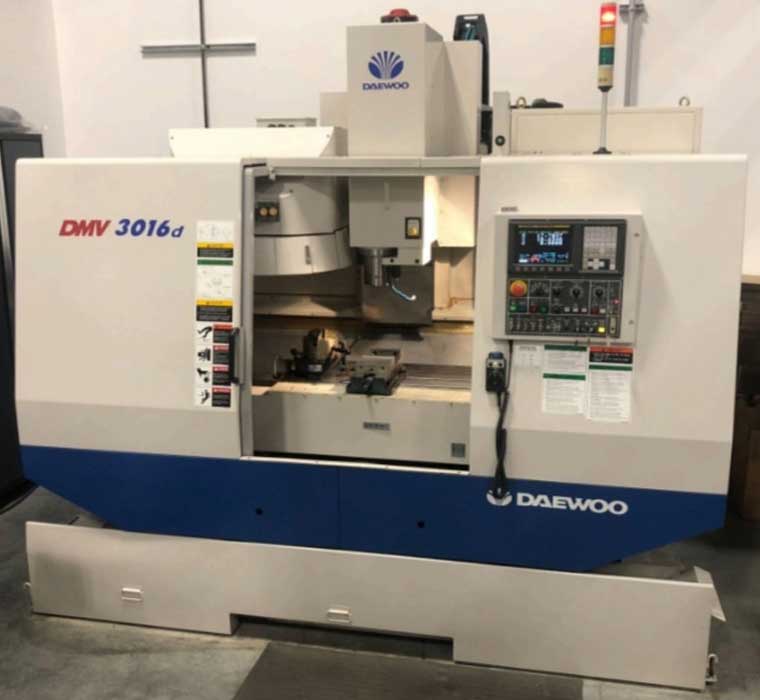

Daewoo CNC DMV 3016D
We are pleased to offer a Daewoo CNC DMV 3016D Vertical Machining Center for sale. This machine is in excellent working condition with low hours, making it a reliable and cost-effective addition to any shop floor.
Specifications
| Specification | Details |
|---|---|
| Make & Model | Daewoo CNC DMV 3016D |
| Machine Type | Vertical Machining Center (VMC) |

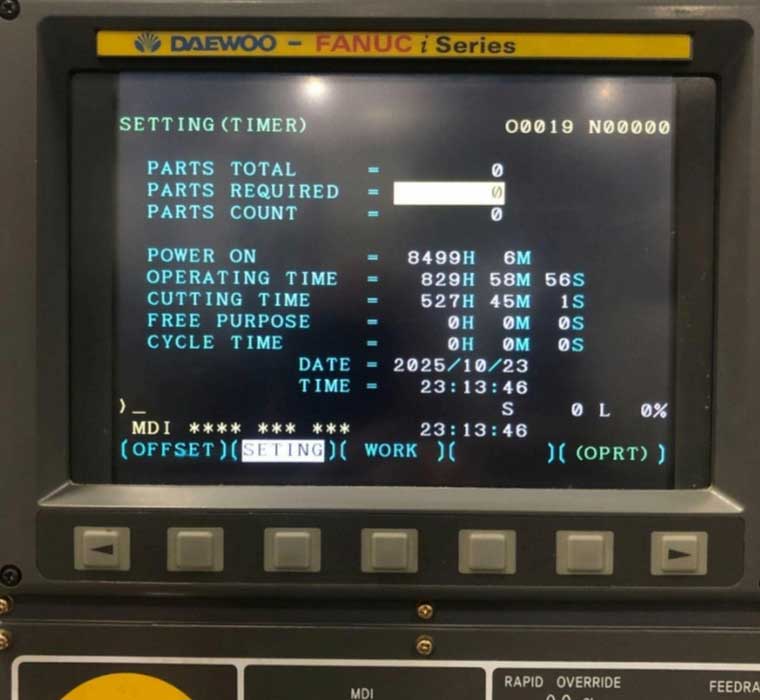

| Operating Hours | 800 hours |
| Condition | Used - Excellent |
| Asking Price | $30,000.00 CAD |
| Model Year | 2004 |
| Serial No. | AV4E0354 |

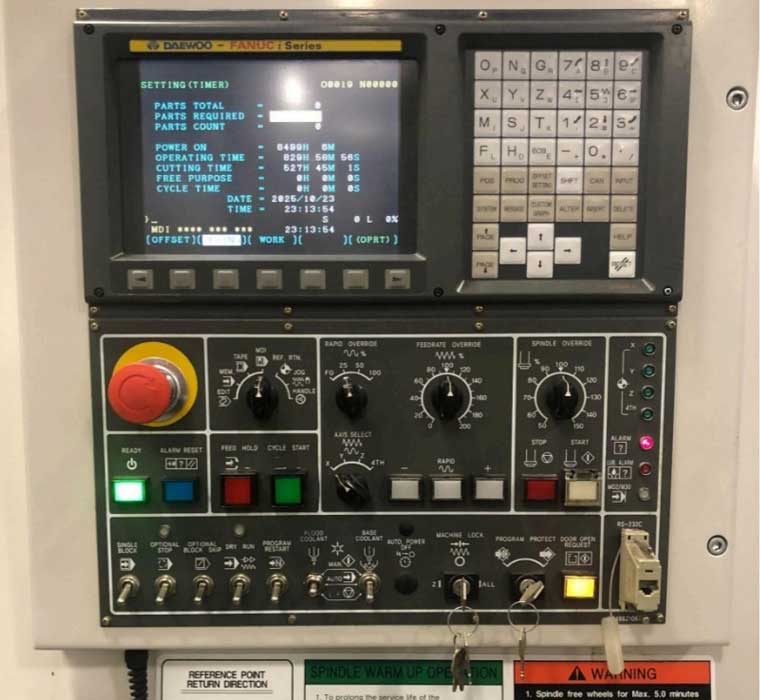

| Control | Fanuc oi-MB |
| X Travel | 820mm 32.3" |
| Y Travel | 410mm 16.1" |
| Z Travel | 510mm 20.1" |
| Table Size | 1000mm x 450mm (39.4" x 17.7") |
| Max. Table Load | 600kg |
| RPM | 8,000 |
| HP | 15 |

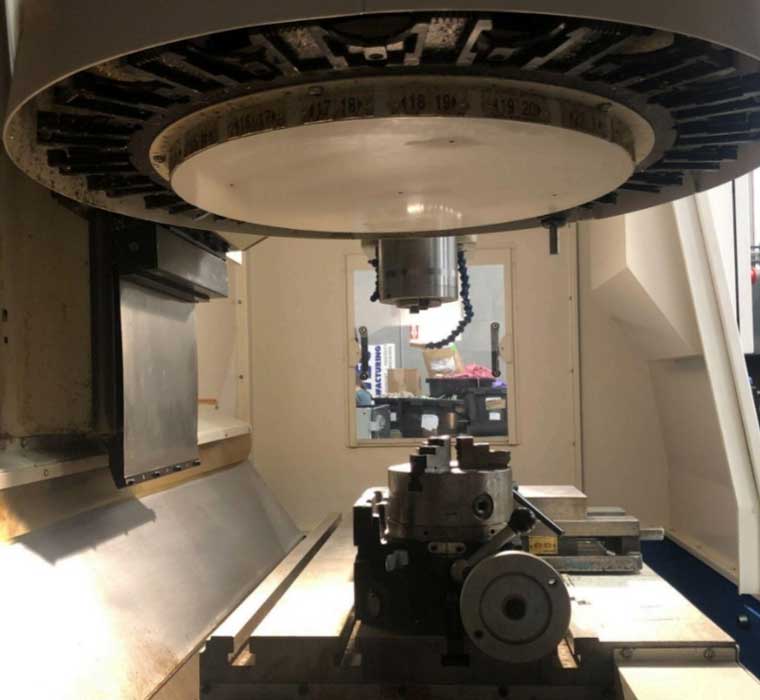

| ATC | 20 Tool (Automatic Tool Changer) |
| Tool Standard | CAT 40 |
| Voltage | 208V-240V |
| Phase | 3 |
| Frequency | 60Hz |
| Power | 35KVA |
| Positional Accuracy | +/- .005mm/full stroke |
| Repeatability | +/- .002mm |
Highlights:
- Low operating hours (800) – well-maintained and ready for production.
- Reliable Daewoo CNC control platform with proven performance.
- Cost-effective solution for precision milling and machining operations.
- Ideal for job shops, manufacturing facilities, and production environments.
Additional Features:
- Box Way Construction on X, Y, and Z axes
- Flood Coolant
- Base Coolant

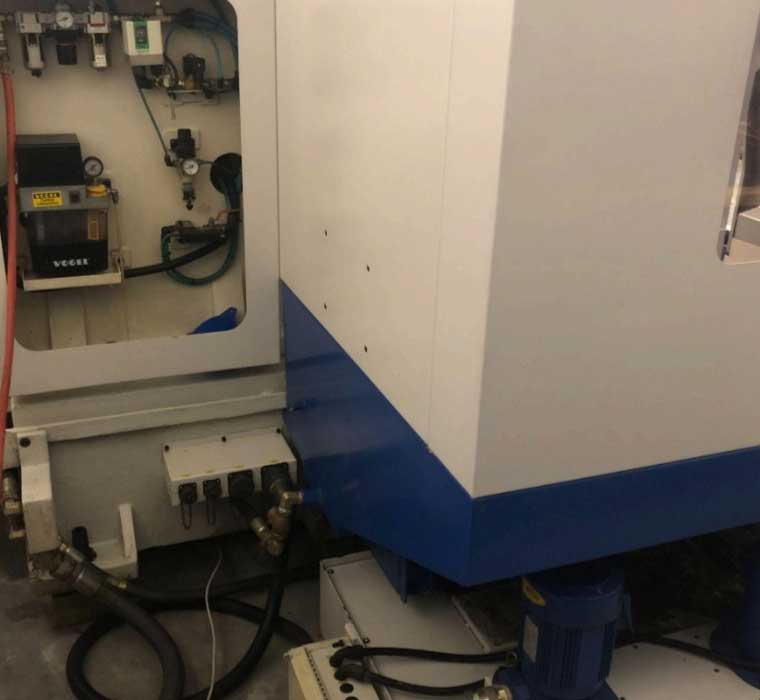

- Automatic Lubrication System
- Rigid Tapping
- Leveling Pads
- Numerous Canned Cycles (Part Scaling, Rotation, Mirror Imaging)
- Engraving Program
- RS232C I/O Device

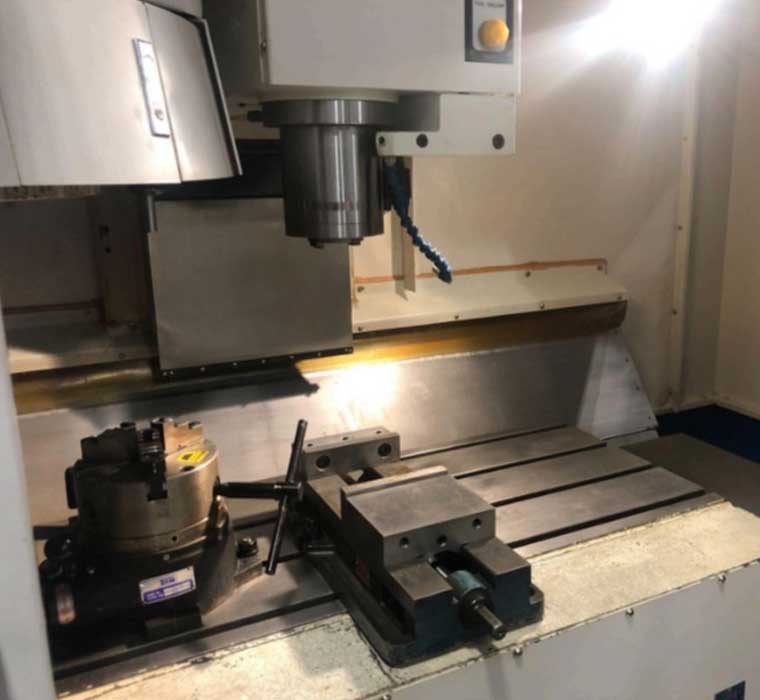

- Clamping Kit
Asking Price : $ 30,000.00 CAD
As is where is, no warranty offered or implied.
Located in Kelowna.
