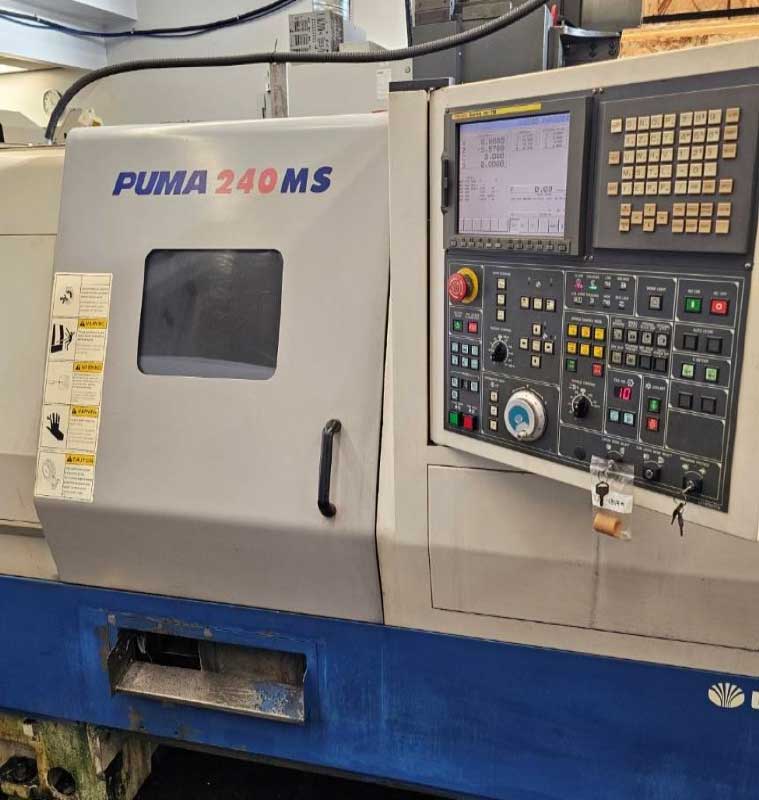

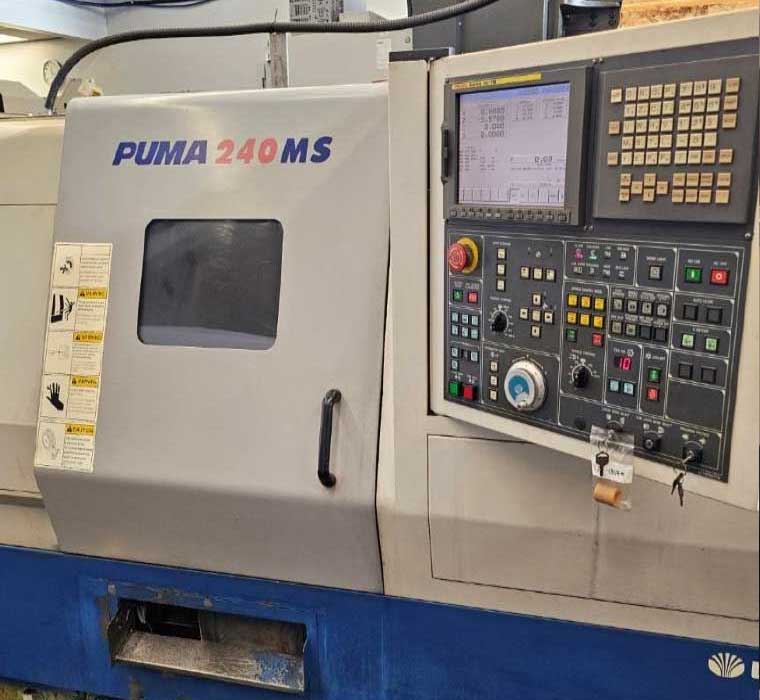

Daewoo Puma 240 MSC
Manufactured 2005
Serial # 24MS1526
Specifications
| Capacity | |
|---|---|
| Swing over bed | 21.7" |
| Swing over carriage | 15.4" |
| Maximum turning diameter- main spindle | 11.4" |
| Distance between main and sub spindle face | 32.3” |
| Main Spindle | |
|---|---|
| Spindle speed RPM range | 35 - 3,500 |
| Spindle nose | A2-8 |
| Draw tube I.D. | 3.03” |
| Spindle bore diameter | 3.54” |
| Rotating Tools | |
|---|---|
| Rotating tool speed | 50 - 5,000 RPM |
| Rotating tool spindle motor (10 min rating) | 7.5 Hp |
| Rotating tool torque | 34.7 ft-lbs. |
| Rotating tool collet type | ER 25 |
| Collet capacity | 1/8" to 5/8" |
Included:
- New main Spindle bearings installed
- Parts catcher and conveyor
- SMW Space saver Bar feeder
- Hinge belt chip conveyor

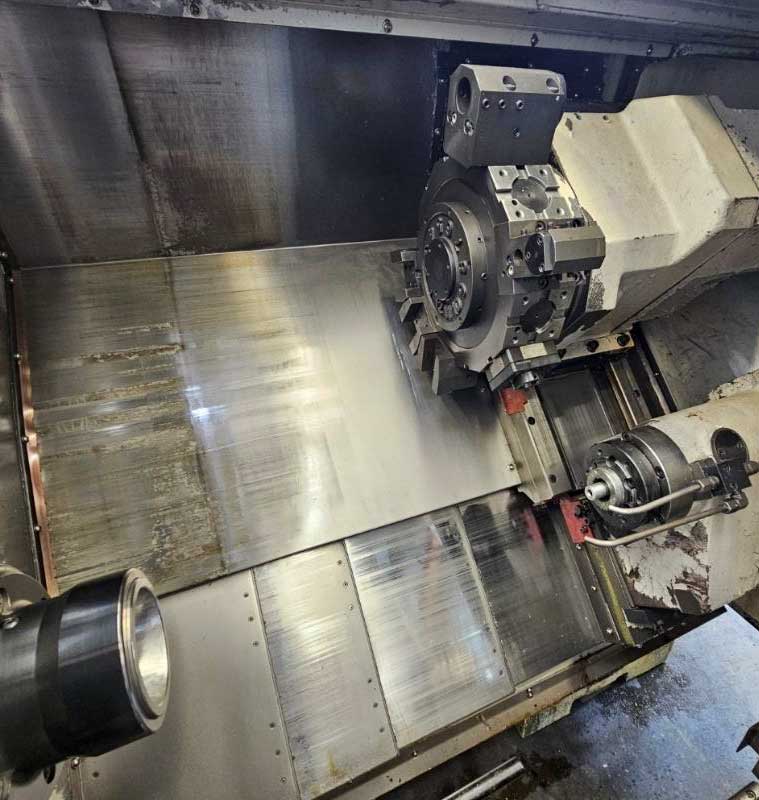

- Turret tooling with 1 X axis and 1 Z axis live tool drive
- Collet chuck and 3 Jaw hydraulic chuck
Sub spindle needs new motor and drive (estimate was $10.00 to repair).
Running as tailstock right now.
Machine is located in Victoria, BC.
